6.7 PowerStroke Charge Air Pipe

whole model of ls carbon covers with trims and ccv provision

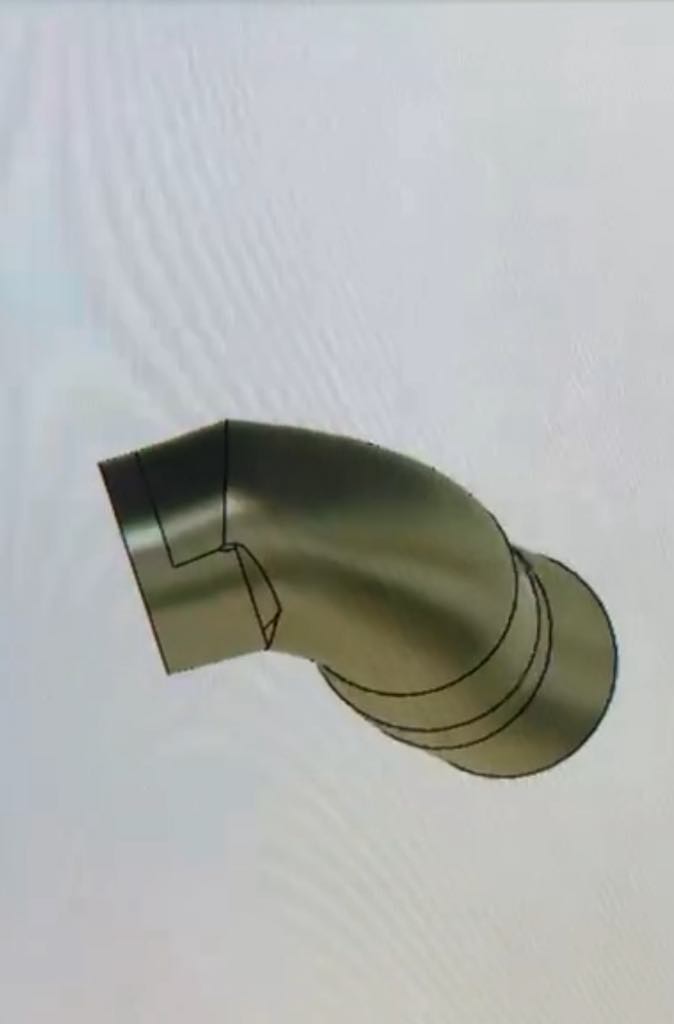

The broken section of this pipe was presented to Grim to refine design and contours.

whole model of ls carbon covers with trims and ccv provision

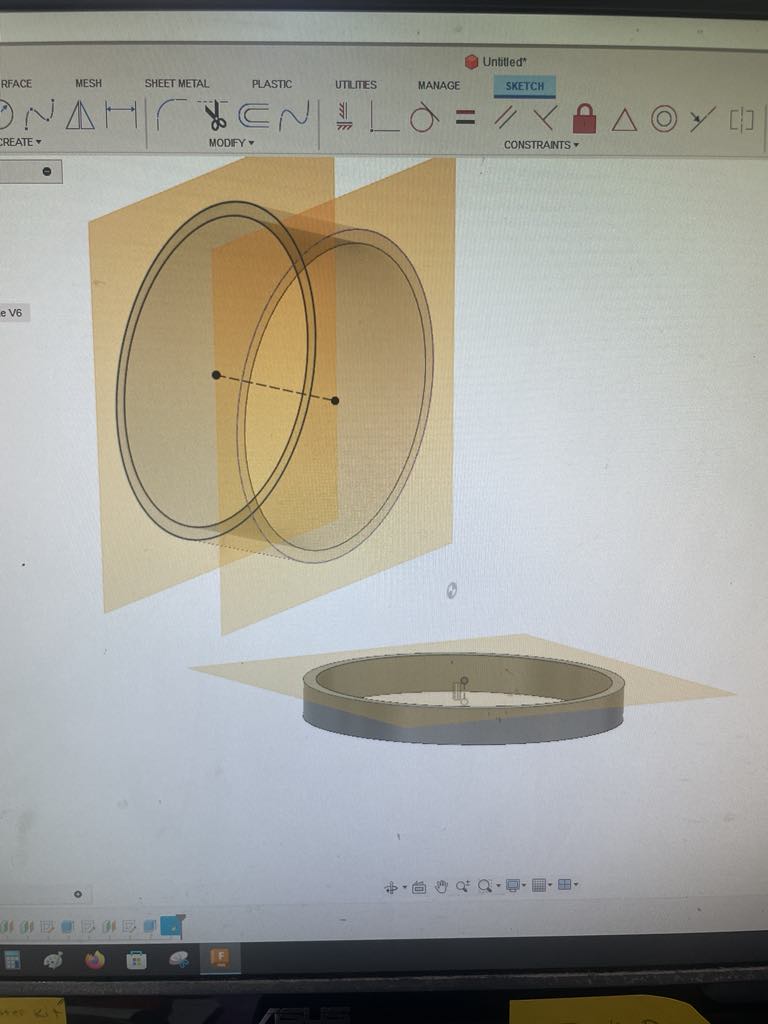

Utilized planes and known geometry for the charge air cooler (CAC) pipe design.

whole model of ls carbon covers with trims and ccv provision

Mesh rendering and spline of CAC pipe taking shape and meeting required space constraints.

whole model of ls carbon covers with trims and ccv provision

Perfected pipe contours and bends for final rendering.

The PA6/Carbon composite structures are incredibly resilient at 6-8mm thicknes. This component was capable of withstanding over 65 pounds of boost pressure.

whole model of ls carbon covers with trims and ccv provision

Completed 6.7 PowerStroke CAC pipe with tempurature sensor bung, clamps, boots, intake horn, and Grim Logo.
