LS Carbon Fiber valve covers

whole model of ls carbon covers with trims and ccv provision

Complete model of cover with related trim and ccv provision

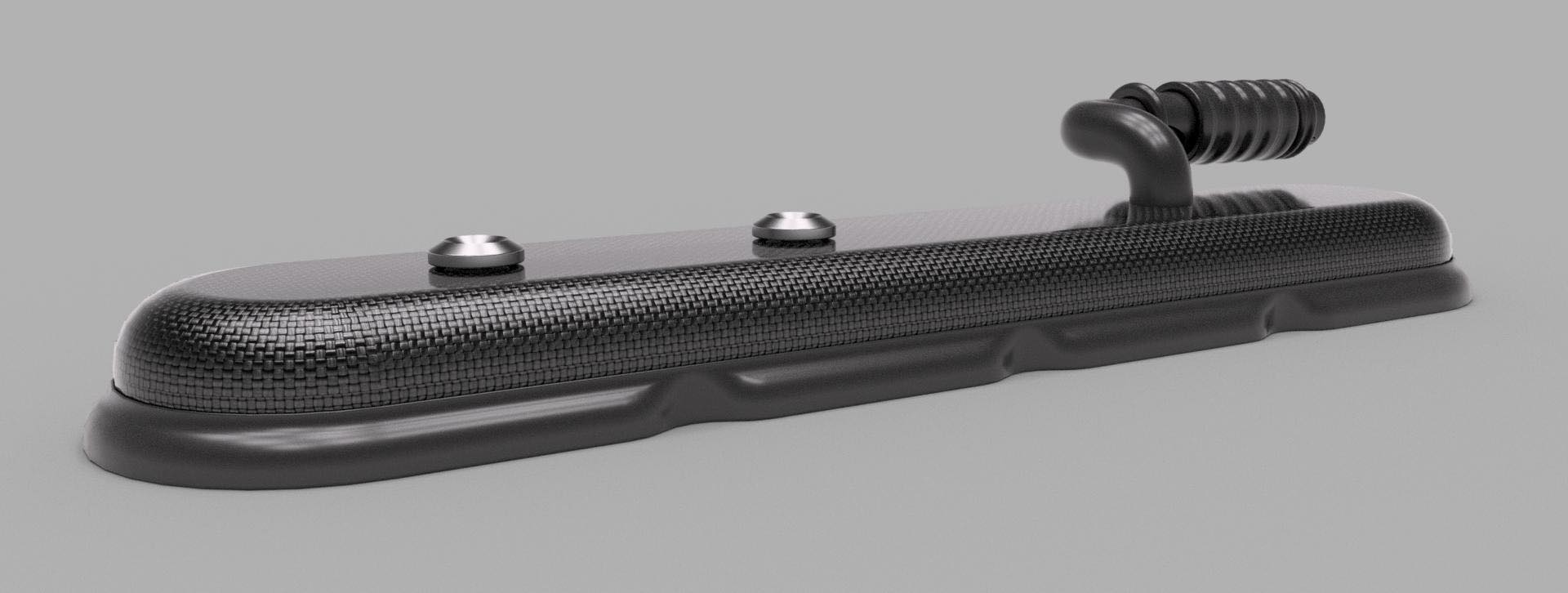

polished 3D rendering

the PA6 carbon nylon base render

casted aluminum roughed into shape

CURVY

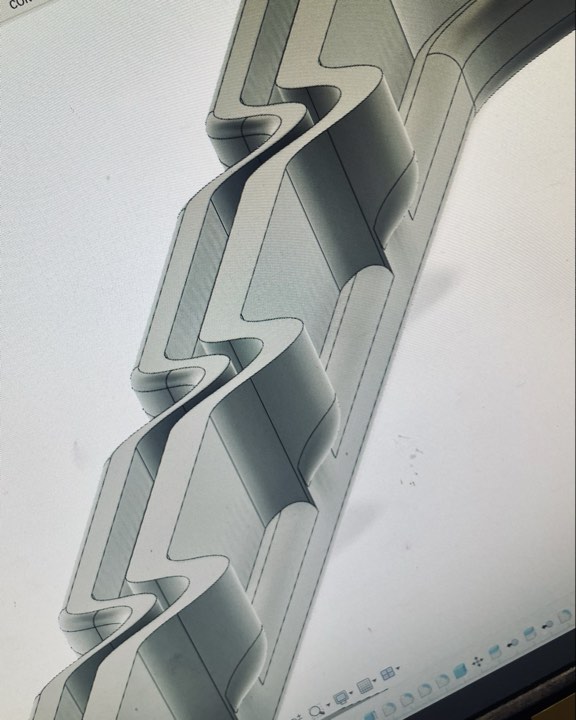

imprint modeling exercise

Custom quarter turn lock CCV provision

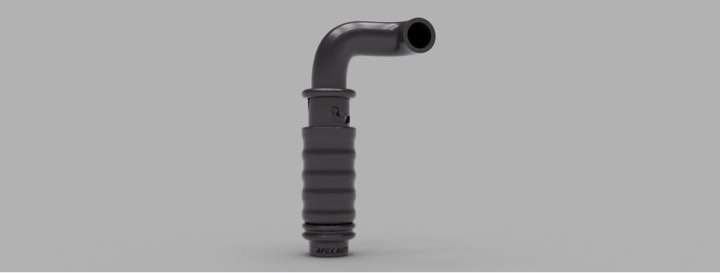

polished 3D rendering

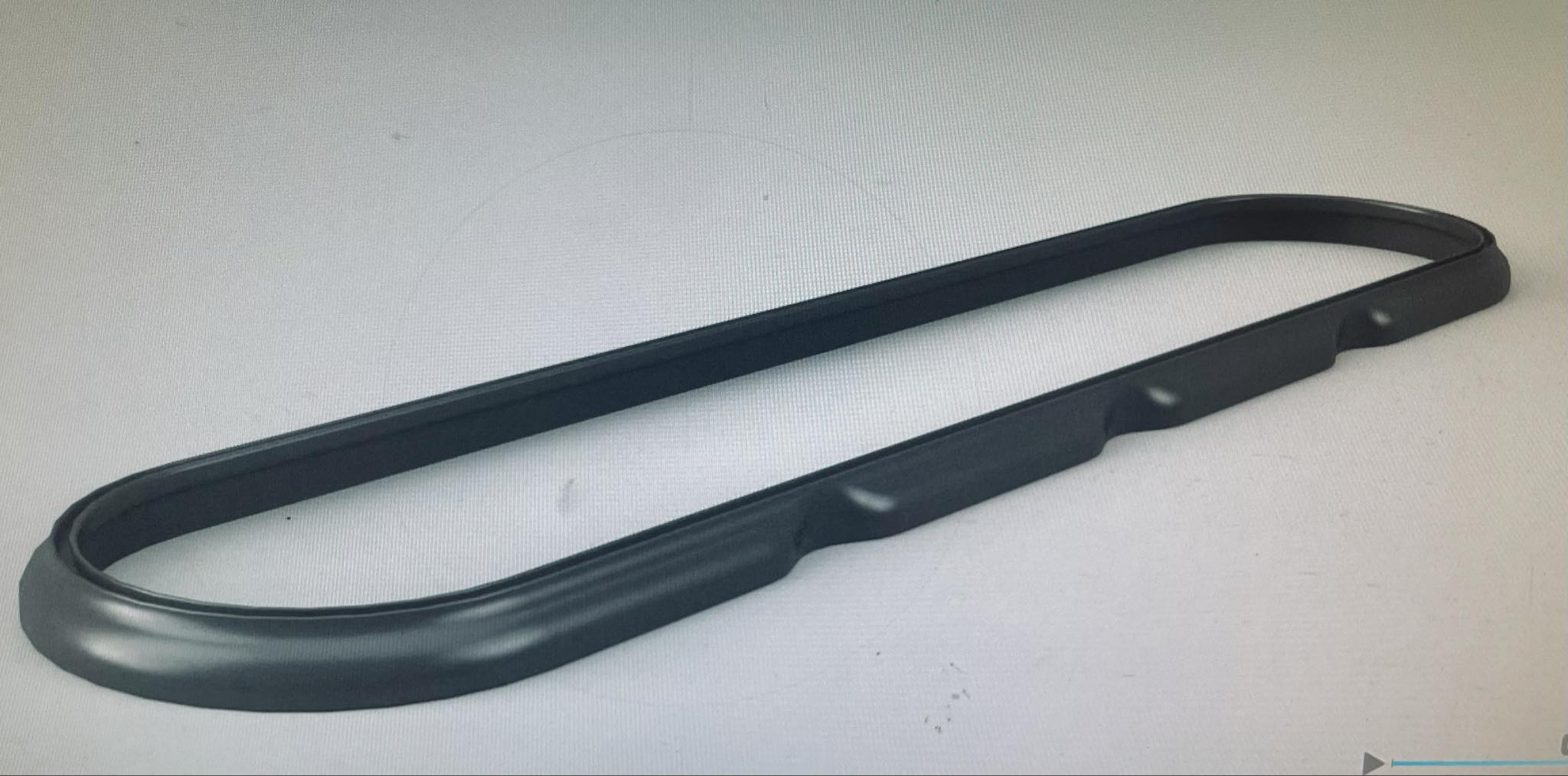

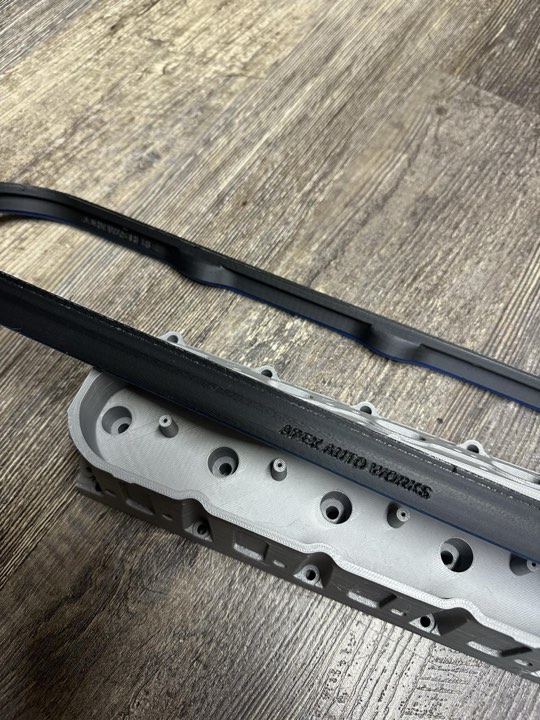

test flange printed for an associate on mock LS head for scale fit

casted aluminum roughed into shape

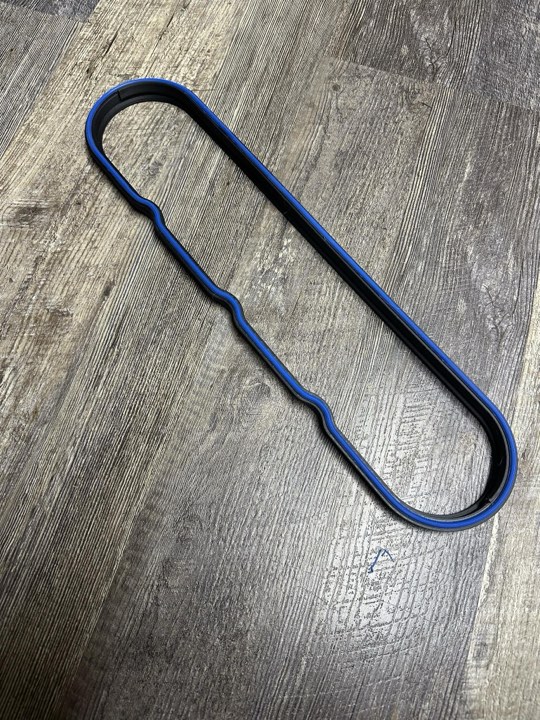

confirmed gasket fit

This is where this project stopped for the time being, the 3d printed mold for the carbon cover would not hold a vaccuum during the carbon fiber process.. to be continued
